The “wanigan” was an 8 x 24 foot mobile caboose that was attached to the back of Arctic explorers’ tracked wagon trains. The wanigan had four bunks, refrigerator, coal stove, table, sink, and latrine. Click to Enlarge to 594 x 478 px: Source: Popular Mechanics May 1950
Tag: Vehicles
General category for cutaway drawings related to cars, trucks, and anything to do with land transport.
Pickup Truck Camper Cutaway, 1967
This pickup truck camper was pretty state-of-the-art stuff for RVs in the late 1960s. It had a pass-through to the cab; 12v outlets; aircraft inclinometers to indicate when the camper was leveled off; stiff springs; and an over-the-cab bunk. Source: Popular Mechanics May 1967
Futuristic Car Cutaway, 1940
In 1940, it was asked if we might be driving a car like this in only two years. The novel cutaway turned the notion of how to design a car on its head: streamlined to look like “a giant aerial bomb on wheels,” with the engine in back, driver in the center, and rear passengers… Continue reading Futuristic Car Cutaway, 1940
Cutaway of Admiral Byrd’s Antarctic Snow Cruiser, 1939

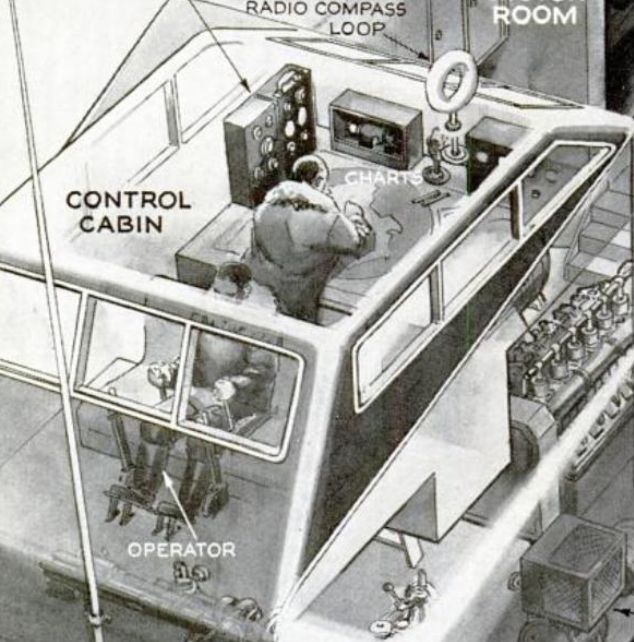

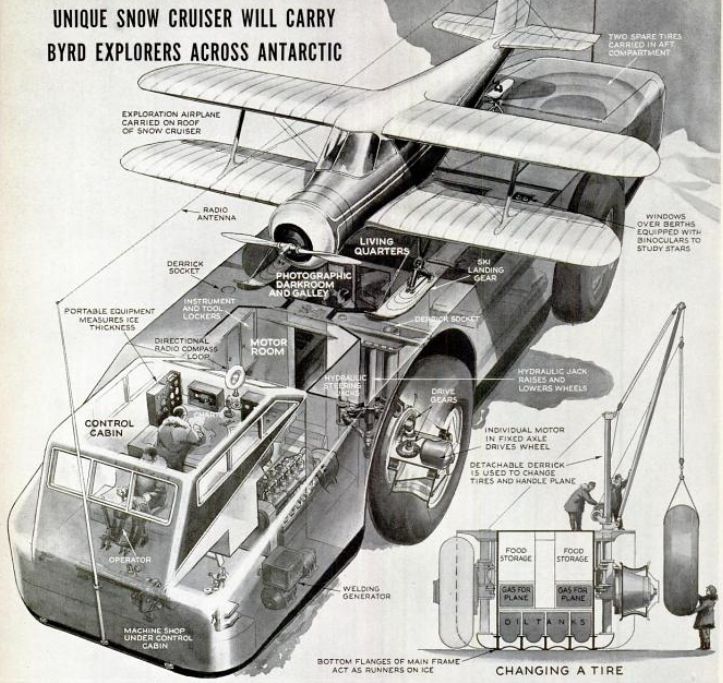

Click Here For Large (1353 x 1200 Pixels) In an issue of LIFE magazine from October 30, 1939 that I have is a great cutaway drawing of Admiral Byrd’s snow cruiser. Admiral Byrd was a naval officer who was the first person to reach the North and South Poles by air. At 55 feet… Continue reading Cutaway of Admiral Byrd’s Antarctic Snow Cruiser, 1939
